> Estelon XB Diamond MkII 3-Weg Vloerstaand met ceramische drivers



DESIGN STATEMENT SONIC ELEGANCE

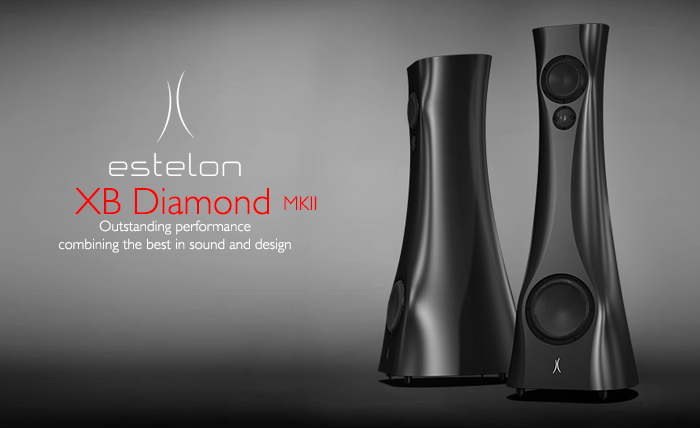

The new XB Diamond Mk II is the closest alternative to the X Diamond Mk II, which performs outstandingly in smaller listening spaces. The new XB Diamond Mk II combines the best in sound and design, which is the hallmark of Estelon products.

The XB Diamond Mk II features a 1" diamond tweeter, along with new cabling and a top-of-the-line crossover, that deliver extended high frequencies for a smooth and a resonant-free acoustic experience. The XB Diamond Mk II will intensify the fidelity through its transparency, precision, and the unprecedented detailed reproduction.

The XB Diamond to XB Diamond MkII product updates and improvements:

  • Driver membranes in dark grey matte color (white is a free of charge color option).

  • New crossover with improved components featuring Copper Foil Coils for clarity,
    precision and faster sound plus Mundorf resistors and Silver Gold Oil capacitors for
    wider dynamic range and transparency.

  • New bass crossover design for more accurate reproduction and better bass integration.

  • New higher quality Kubala-Sosna Pure Copper cabling resulting in a more detailed and
    richer sound.

  • New high-quality stainless steel black matte floor-spikes and swappable flat feet
    (designed by Estelon) for carpeted or hard floors, resulting in fewer vibrations and better
    overall audio reproduction.

  • New stronger & more secure Furutech connectors.

  • New black connection panel with serial number.

  • Matching color of the connection panel, stainless steel spikes/feet, and the drivers for an
    even more elegant appearance.

Specifications
- Type: passive speaker, bass reflex

Drivers
- Woofer: 220 mm (8,7-inch) accuton, ceramic sandwich dome
- Mid-woofer: 158 mm (6,25-inch) accuton, ceramic membrane
- Tweeter: 25 mm (1-inch) accuton, diamond inverted dome

- Internal wiring: kubala-sosna pure copper
- Frequency response: 22-60 000 hz
- Power rating: 150 w
- Nominal impedance: 6 ohms (min 3,5 ohms at 50 hz)
- Sensitivity: 87 db / 2,83 v
- Minimal amplifier power: 30 w

Dimensions
- Height: 1260 mm (49.6-inch)
- Width: 420 mm (16.5-inch)
- Depth: 590 mm (23.2-inch)

- Net weight: 69 kg per piece
- Cabinet material: marble based composite
- Recommended room size: 20-50 m²
