Digital signal and USB cables
possess extreme sensitivity to
proximal noise because of the
environment they are applied within.

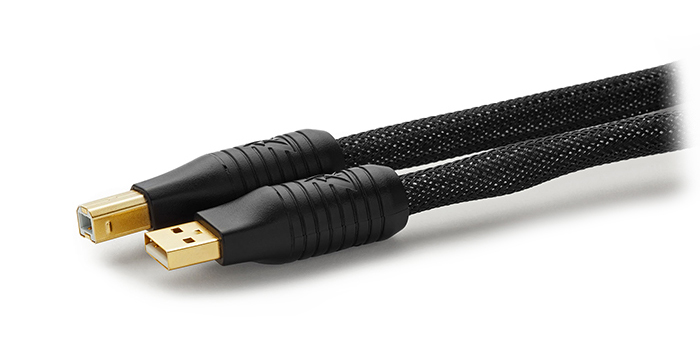

The Alpha USB possesses a uniquely
applied 100% coverage silver-mesh
shielding to minimize exposure to
radiation from nearby noise sources.
Due to the high-speed nature of the
digital signal, the Alpha conductors
and termination junctions are
perhaps the most critical aspect of
any digital cable design. Caelin
Gabriel uses his own proprietary
design process called Precision
Matched Z conductors which eliminate
conductor incongruities that would
otherwise distort high-speed signal
transfer. To finish the Alpha USB
design, custom-manufactured
connectors are hand-applied using an
alloy developed to eliminate
junction related distortions
inherent in all standard USB cable
designs. The performance gain from
these material refinements makes the
Alpha USB the first choice for
performance anywhere near its value
oriented price.
Features
- Alpha USB cables feature
Precision Matched Z conductors.
- Signal and power wires are heavily
shielded for superior noise immunity.
- Each Alpha USB cable is handmade.
- Standard length of cable is 1.5
meters.
KPIP™ (Kinetic Phase
Inversion Process) was developed by
Caelin Gabriel after years of
research into the underlying causes
of various effects such as burn-in,
wire directionality and the effects
of cryogentic treatment. He
discovered that there was an
underlying core principle that
burn-in and cryogenics only
“partially” addressed. Once the
governing principle was understood
it became possible to create a
processing technique and machine
that could virtually eliminate the
need for burn-in and cryogenic
treatment.
Shunyata Research digital cables are
produced using a Precision
Matched Z (PMZ) concept. This
means that tolerances of the
conductor surface, dielectric
extrusion, and the precision of the
braided shield are held to minute
variances. To achieve these tight
tolerances, the extrusion and
braiding machines must be run at
one-quarter speed during the
manufacturing process. The result is
better performance through a
reduction of cable-induced ‘signal
jitter’. (Note: Z means impedance)
Wire
- Precision Matched Impedance
- CCC Silver Conductors
- FEP Dielectrics
- Silver Braided Shield
Termination
- USB A to B
- 90 Ohm PMZ
Voor de beschikbare lengtes van
deze kabel raadpleeg de
prijslijst. |
