Features
- HD Video pass through (3D)
- Upscaling to 1080p
- 5 HDMI in
- 2 HDMI out
- New onscreen menu
- Individual offset per input
- Individual video settings
per HDMI output
- 5 x 120W UFPD amplifiers
For those who value performance over
gadgetry, convenience over
complexity, understated elegance
over conspicuous display, the new

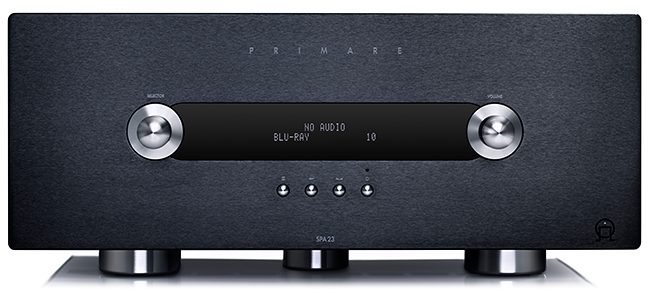

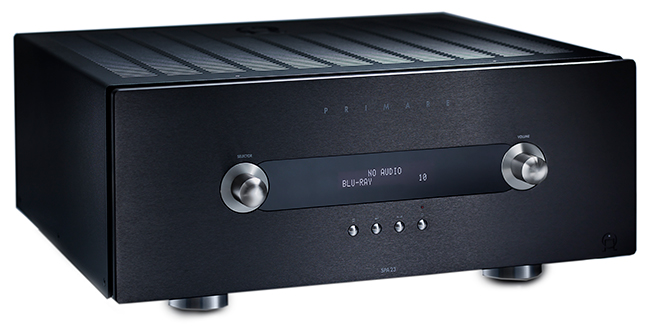

SPA23 AV amplifier offers all the
quality and scale of high-end home
cinema performance in a beautifully
engineered, easy-to-use design. The
SPA23 is definitively Primare in
character, blending superior
innovation, flexibility and signal
purity with an exclusive visual
chic. Equipped with five identical
120W UFPD amplifiers, HD audio
processing, five state-of-the-art
HDMI inputs, two HDMI outputs and a
versatile range of analogue and
digital audio inputs, the SPA23 will
deliver easy access to the explosive
energy - and all the detailed
subtlety - of the latest high
definition film and music sources.
| |
|
|

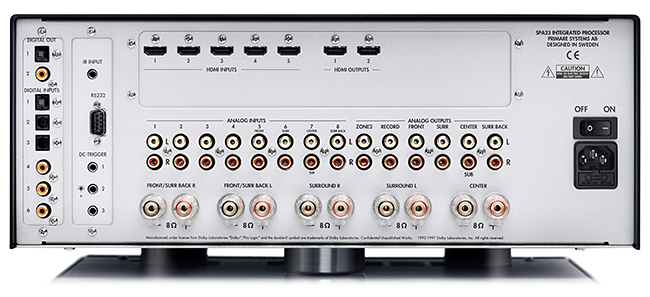

Inputs
and outputs |
|
Loudspeaker outputs: |
Front (left
and right, can be switched
to surr back)
Center, Sub, Surr (left and
right) |
|
Analogue outputs: |
Front (left
and right)
Center, Sub
Surr (left and right)
Surr back (left and right) |
|
Analogue record output: |
1 RCA (left
and right) |
|
Zone2 output: |
1 RCA (left
and right) |
|
Digital outputs: |
1 RCA, 1
TOS-Link |
|
Video Output: |
2 HDMI |
|
Analogue inputs: |
8 RCA, incl.
7.1 inputs |
|
Digital inputs: |
3 RCA, 3
TOS-Link. |
|
Video Inputs: |
5 HDMI |
|
|
|
|
Digital |
|
Frequency response: |
20Hz-20kHz
±0.2dB |
|
THD and noise: |
0.005% @1kHz
(AES17 filter) |
|
|
|
|
Analogue |
|
THD: |
<0.005%,
20Hz-20kHz |
|
Signal to noise ratio: |
-110dB |
|
Frequency response: |
10Hz-100kHz,
1dB |
|
Input impedance: |
47kΩ
unbalanced |
|
Output impedance: |
47Ω
unbalanced |
| |
|
|
Power
Ampliers |
|
Output power: |
5 x 120W, 8Ω |
|
Output power 1kHz, one
channel driven: |
8Ω 150W THD+N
<1%
4Ω 300W THD+N <1% |
|
Output power 1kHz, all
channels driven: |
120W 4/8Ω
THD+N <0.1% |
|
THD: |
<0.01%
20Hz-20kHz 1W 8Ω, AP AES17
Filter |
|
Signal-to-noise: |
80dBr, AP
AES17 filter, ref 2.828Vrms. |
|
Frequency response: |
20Hz-20kHz
-0.2dB, 1W 8Ω |
| |
|
|
Processing |
|
Upscaling: |
1080p/24 |
|
Video: |
HDMI with
HDvideo pass-tru with 3Dpass
and HDMI OSD |
|
Modes: |
Stereo,
Bypass, Party,
Dolby Prologic IIx Music,
Dolby Prologic IIx Movie,
DTS NEO:6 MUSIC
DTS NEO:6 CINEMA |
|
Decoding formats: |
Dolby Digital
Dolby Digital EX
Dolby Prologic II
Dolby Prologic IIx
Dolby EX
Dolby Plus
Dolby TrueHD
DTS
DTS ES
DTS Neo:6
DTS 96/24
DTS HDMaster Audio
DTS HD High Res audio
MULTI/2 CH PCM/LPCM |
|
Sampling rates: |
32KHz,44.1KHz,48KHz,
88.2KHz,96KHz,192KHz |
| |
|
|
Control |
| |
1 IR Input
3 12V outputs (triggers),
1 RS232 |
|
RS232: |
The RS232 connector
allows your dealer to
upgrade the firmware on your SPA23,
or control
the SPA23 as part of a multi-room
system. |
| |
|
|
General |
|
Power consumption: |
Operating: 800W at
1K, 8Ω ,120W all channels
driven. Fully stabilized SMPS |
| |
|
|

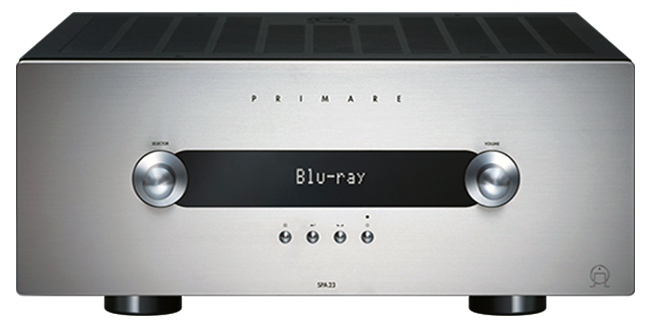

Color: |
black or titanium |
|
Weight: |
15 kg |
|
Width: |
430 mm |
|
Depth: |
385 mm |
|
Height: |
180 mm |
|
