With a seductive
blend of state-of-the-art
performance and intuitive
ease-of-use, the advanced SP33
audiophile balanced eight-channel
pre-amplifier/processor will perform
beautifully at the centre of your
entire home entertainment system.
Featuring no fewer than five HDMI
inputs of the latest spec, and two
HDMI outputs, together with a wide
range of analogue and digital audio
connections, the SP33 gives you the
power of fingertip control over all
your home entertainment sources,
including disc players, DACs,
computer files and online movies and
music. And with versatility and
convenience comes the superb
audiophile performance of a Primare
30 series design. At this level
Primare provides the very best of
our audio and video design
capabilities, to release the
vitality hidden in your film and
music collections.
Features
- HD Video pass through (3D)
- Upscaling to 1080p
- 5 HDMI in
- 2 HDMI out
- New onscreen menu in conjunction
with new C24 remote
- Individual offset per input
- Individual video settings per HDMI
output |
| |
|
| |
|
|

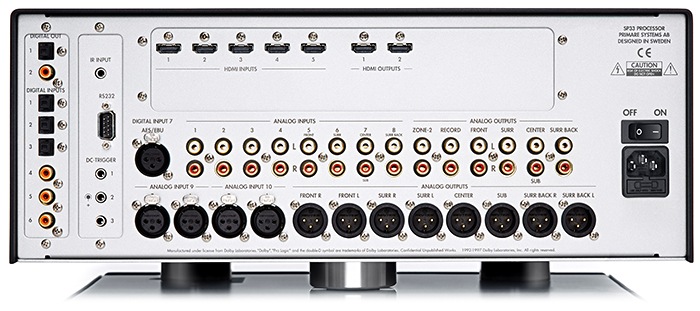

Balanced analogue outputs: |
Front (left
and right)
Center, Sub, Surr (left and
right)
Surr back (left and right) |
|
Unbalanced analogue outputs: |
Front (left
and right)
Center, Sub
Surr (left and right)
Surr back (left and right) |
|
Analogue record output: |
1 RCA (left
and right) |
|
Zone2 output: |
1 RCA (left
and right) |
|
Digital outputs: |
1 RCA
1 TOS-Link |
|
Video outputs: |
2 HDMI |
|
Analogue inputs: |
2 balanced
8 RCA
incl. 7.1 inputs |
|
Digital inputs: |
1 balanced
3 RCA
3 TOS-Link. |
|
Video Inputs: |
5 HDMI |
|
|
|
|
Digital |
|
|
Frequency response: |
20Hz-20kHz
±0.2dB |
|
THD and noise: |
0.005% @1kHz
(AES17 filter) |
|
THD: |
<0.005%,
20Hz-20kHz |
|
Signal to noise ratio: |
-110dB |
|
|
|
|
Analogue |
|
|
Frequency response: |
10Hz-100kHz,
1dB |
|
Input impedance: |
47kΩ
unbalanced
3kΩ balanced |
|
Output impedance: |
47Ω
unbalanced
47Ω balanced |
|
|
|
|
Processing |
|
|
Upscaling: |
1080p/24 |
|
Video: |
HDMI with
HDvideo pass-tru with 3Dpass
and
HDMI OSD |
|
Modes: |
Stereo,
Bypass, Party,
Dolby Prologic IIx Music,
Dolby Prologic IIx Movie,
DTS NEO:6 MUSIC
DTS NEO:6 CINEMA |
|
Decoding formats: |
Dolby
Digital
Dolby Digital EX
Dolby Prologic II
Dolby Prologic IIx
Dolby EX
Dolby Plus
Dolby TrueHD
DTS
DTS ES
DTS Neo:6
DTS 96/24
DTS HDMaster Audio
DTS HD High Res audio
MULTI/2 CH PCM/LPCM |
|
Sampling rates: |
32KHz,44.1KHz,48KHz,
88.2KHz,96KHz,192KHz |
|
Control: |
1 IR Input
3 12V outputs (triggers),
1 RS232 |
|
RS232: |
The RS232
connector allows your dealer
to
upgrade the firmware on your
SP33, or control
the SP33 as part of a
multi-room system. Do not
connect anything to this
socket unless instructed by
your dealer. |
|
Power consumption: |
Operating:
<60W.
Fully stabilized SMPS |
| |
|
| |
|
|
Color: |
black or titanium |
|
Weight: |
12 kg |
|
Width: |
430mm |
|
Depth: |
385mm |
|
Height: |
180mm |
|
|
