> CD 22 CD speler incl.C22 remote



The CD22 is the successor to and upgrade for the successful and acclaimed CD21 CD player. Every component, from the CD transport to the audio output stage, has been designed to achieve the highest possible audio performance.

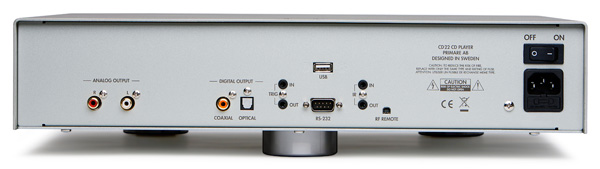

It incorporates a dedicated CD-transport with a considerable five second buffer memory in order to provide the best jitter suppression and protection from mechanical shock. Operation can be customised by choosing the preferred sample frequency: 44.1 kHz, 48 kHz, 96 kHz or 192kHz. Comprehensive outputs include unbalanced RCA analogue, together with SPDIF and TOSLINK digital outputs. The CD22 will also play and control MP3 or WMA files via USB or disc.




Mechanism: Asatech 8210.B01-02, Sanyo SF-P101N
D/A Converter: 1x PCM1792, 24/192 kHz
Output Analogue: 1 pair RCA, 2.1 Vrms
Output Impedance: RCA 100 Ώ
Frequency Response: 20Hz – 20 kHz -0.5dB
Signal-to-noise Ratio: 20Hz – 20kHz unweighted -100dB
Harmonic Distortion + N: 20Hz – 20kHz <0.01%
Digital Output: 1x S/PDIF (RCA); 1x optical (TOSLINK)
Other inputs: USB interface;
IR input 3.5mm;
RS232; Trigger in/out 3.5mm
Power Consumtion: Standby 0.3W; Operation 25W


Color:  black or titanium
Weight: 10,5kg
Width: 430 mm
Depth: 375 mm
Height: 106 mm
