Versatile and
intuitive to use, the Nēo 250i
delivers a seductive musical
performance and represents and
outstanding value. Well respected
and known for exceptional
price-to-quality ratio, the Nēo 250i
marries a classy appearance, true
MOON-build quality and
irreproachable sound quality without
equal in its price class. Assembled
to our exacting standards, it will
deliver outstanding performance with
the reliability that has made our
products so well known and respected
around the world. Of course, key
features you'd expect in a MOON Nēo
Series product are present such as

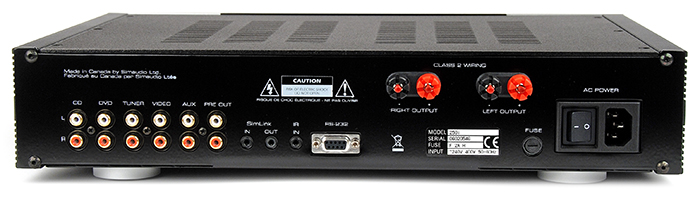

SimLink™, RS-232 and IR ports for
custom-install environments.
Features

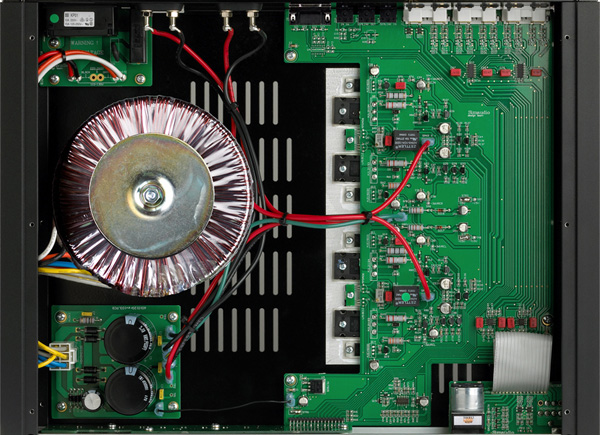

- An oversized power supply using a
custom toroidal transformer design
- 6 line-level inputs including a
front-mounted 1/8" mini-jack for
personal media players
- Headphone output on 1/4" TRS jack
located on the front panel
- "Class A" output to 5 watts for
greater efficiency
- Heat-sink free design
incorporating an aluminum chassis
for evenly distributed heat
dissipation
- RS-232 port for (i) full
unsolicited bidirectional feedback
and (ii) firmware updates
- IR input for external control
- SimLink™ controller port for 2-way
communications with other compatible
MOON components
- Rigid chassis construction to
minimize the effects of external
vibrations
- Optimized selection of very high
quality electronic components
- Low operating temperature for an
ultra-long life expectancy
|
|
Configuration: |
Single-ended /
2-channel |
|
Power Supply Transformer: |
320VA |
|
Power Supply Capacitance: |
20,000µF |
|
Class of operation - Amplifier: |
A/AB |
|
Single Ended Inputs (RCA): |
5 pairs |
|
Mini-jack Input (1/8"): |
1 |
|
Input Sensitivity: |
370mV - 3.0V RMS |
|
Input Impedance: |
11,000 Ω |
|
Preamplifier Output: |
1 pair |
|
Output Device Types - Amplifier: |
Bipolars - 2 per
channel |
|
Output Power @ 8Ω: |
50 Watts per channel |
|
Output Power @ 4Ω: |
100 Watts per channel |
|
Output Impedance: |
0.04Ω |
|
Damping Factor: |
> 200 |
|
Gain: |
37dB |
|
Dynamic Headroom: |
3dB |
|
Signal-to-noise Ratio: |
101dB @ full power |
|
Maximum Output Voltage: |
22 Volts |
|
Slew Rate: |
20V/µs |
|
Maximum Current - Peak: |
15 amperes |
|
Maximum Current - Continuous: |
9 amperes |
|
Frequency Response
: |
10Hz - 100kHz
(+0/-3dB) |
|
Crosstalk @ 1kHz: |
-78dB |
|
IMD: |
< 0.05% |
|
THD (20Hz - 20kHz @ 1 watt): |
< 0.015% |
|
THD (20Hz - 20kHz @ 50 watts): |
< 0.02% |
|
SimLink™ Port: |
1 input + 1 output
each on 1/8" mini-jack |
|
RS-232 Port: |
9-pin female DB
connector |
|
IR input: |
1/8" mini-jack |
|
Remote Control: |
CRM-3 Full Function |
|
Power Consumption @ idle: |
11 Watts |
|
AC Power Requirements: |
120V / 60Hz 220-240V
/ 50Hz |
| |
|
|
|
|
|
Gewicht: |
10 kg |
|
Breedte: |
42,9 cm |
|
Hoogte: |
8,9 cm |
|
Diepte: |
36,6 cm |
|
|
|
|
In the Box
- Owner’s manual
- AC power cable
- CRM-3 remote control with two
CR-2032 batteries
- 1 spare fast-blow fuse
- SimLink / 12V trigger cable |
