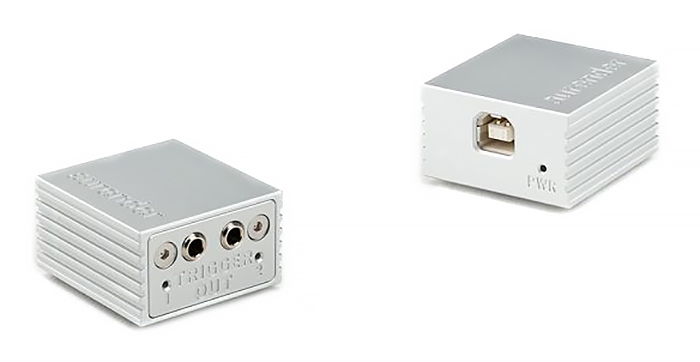

> TD100 12V Trigger Dongle



TD100 provides 12V trigger outputs to interface with devices such as amplifiers and DACs that have corresponding 12V trigger inputs.

When TD100 is connected to an Aurender’s USB port, it generates a 12V trigger outputs under the control of the Aurender Conductor app, to power auxiliary devices On or Off with your Aurender.

TD100 does not work with Windows PCs, Apple Macs, or any other USB host devices other than Aurender components.

Connection
-
TD100 provides two 12V trigger output ports
- Use provided Mono TS cable to connect to trigger input devices with 12V trigger inputs.

Specifications
-
Output: DC12V (Max 100 mA / Port, +-10%)
- Number of Ports: Two
- Input: USB 5V (Max 700 mA)
- Dimension: 38 x 40 x 22 mm
- Weight: 60 g
- Supplied Cables: 1 – 16 in. USB Cable 2 – 80 in. Trigger Cables






Control
  • Use the Aurender Conductor app to turn on/off a specific trigger output port and to
    control the sequence and the time delay between them for a successive operation.

  • Your Aurender will automatically detect connection to TD100. When a TD100 connection is detected,
    “USB Trigger” settings will be configurable in the app:
