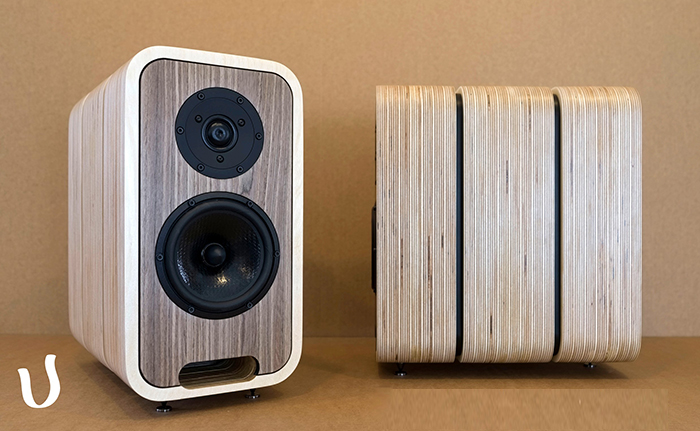

> Magika Plus+ - 2 way Bass Reflex Multipanel System Monitor



Magika +Plus - Evolution without compromise
After seven years of great satisfaction, the time has come to update our most famous and representative 2-way model! Magika becomes +Plus, to offer our public a product that is increasingly performing in size but above all in quality. Magika Plus is the product that marks the change of pace towards increasingly refined and hi-end performance. For the first time we show off our "beating heart"... a state-of-the-art crossover designed to deliver deep emotion and greater immersion during audio playback.

From today greater volume and greater audio versatility
The Plus version of Magika grows in size!

The internal volume goes from 12.5 liters (of the MK2 version) to 16.5 liters. A growth that guarantees greater extension in the low frequencies and a sensation of a wider sound stage. Magika Plus thus becomes a refined, precise and versatile product at the same time. You will be able to appreciate different musical genres without compromises! we have also implemented the box with our patent. IRS EVO! three blocks decoupled and separated by two layers of HPL which make our Magika Plus a top player in construction technique.

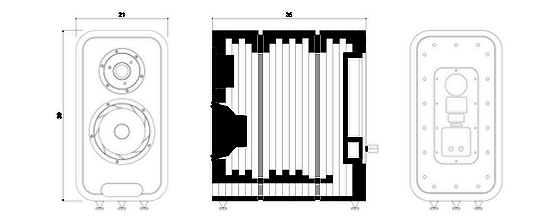

IRS evo(Internal Ribs System) continuous research... even more advanced
The new "rib" assembly system guarantees superior mechanical stiffening, as the alternating thickness acts as bracing. The resulting channels are used for a "reasoned" insertion of the sound-absorbing material, so as to avoid the formation of standing waves inside the cabinet. The drivers are mounted on a 30 mm plywood panel. The separation of the two blocks, subsequently fixed with screws and spaced by an HPL sheet, guarantees further stability over time on the part of the birch plywood.

A confirmation of Excellence our drivers... the certainty of quality
Again our "Satori" series Sb acoustic tweeter, characterized by a decoupled black aluminum front flange. In this way the vibrations generated by the woofer and transferred to the cabinet do not influence the micro oscillations of the tweeter. Balanced double compression chambers for better dynamics. The 16cm woofer in woven polypropylene to obtain excellent damping guarantees a uniform and extended frequency response. A unique reinforced rubber suspension reduces radial resonances.

Excellence and synergies - A team of excellence and esoteric components!
Magika Plus is a sensational point of arrival but also the fantastic and stimulating start of an uncompromising collaboration. Our engineers have chosen the quality of Duelund capacitors to offer the best to our audience. Always faithful to our simple crossover filter, we also decided to showcase the design quality of the components used and the manufacturing sophistication of our assemblers. A sincere transparent surface reveals the inner quality of our project!

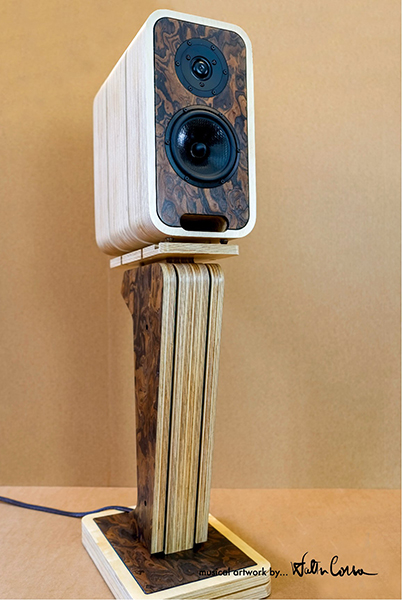

An exclusive stand and a convenient compartment to hide the power cables!
Magika Plus has also been designed with a dedicated support which makes it unique and fascinating! A slight rotation towards the listener optimizes sound projection. A transparent rear channel allows the passage of the wiring, making the installation in your listening room more elegant and tidy. A heavy and massive foot with an anti-vibration and decoupled base, allows you to further implement the quality of audio reproduction.

The elegance of sound - A bridge between tradition and innovation
Magika Plus is available in two very precious Walnut and Canaletto Walnut effect veneers. The elegance of surfaces that have always been considered a symbol of luxury is combined with the freshness of the minimal design dictated by the language of Audel products. The result of this synergy is, once again, the ability to renew itself in the wake of quality and tradition.

Specifications
- System: 2.0 integrated bass reflex
- Cabinet: multipanel system – structure laminated birch wood
- IRS EVO Patent With HPL
- Tweeter: 29 mm soft dome (Two parts aluminium black faceplate with integrated
   mechanical decoupling)
- Woofer: 5 1/2" radial reinforced low loss rubber
- Frequency response: 38 hz – 25.000 hz
- Crossover point: 2.400 hz
- Sensitivity: 87 db
- Nominal impedance: 8 ohm
- Power handling: 30w–120w
- Finish: birch cabinet – Ebony cover - beeswax surfaces
- Dimensions: 390 x 210 x 355 mm (hxwxd)
- Shipping weight: 27 kg pair.





> Finish



FRONT SITE

Walnut

FRONT SITE
Burl Walnut
