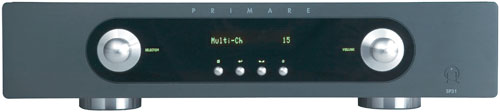

> SP 31
7.1 Home Theater voorversterker |
|
|
This component
combines a highly sophisticated
multi channel pre-amplification with
an advanced multi-channel processor,
decoding multi-channel sources
encoded in Dolby and DTS formats to
provide eight discrete output
channels for up to eight
loudspeakers in a surround system,
and an HD ready ultra-wide bandwidth
video switcher. High speed, high bit
rate processing will ably
accommodate all of the multi-channel
audio surround formats currently
available. The SP31's plug and play
simplicity will appeal to lovers of
multi-channel music by virtue of its
7.1 channel analogue input for DVD-A
and SACD. Its RS232 interface will
allow the processor to be integrated
with high-end home theatre systems
and controlled via a wide range of
home automation "whole house"
controllers. A multitude of onboard
triggers will enable a high degree
of control over partnering equipment
and ancillary features such as
screens and blinds from the SP31
itself. High quality video is served
by a comprehensive range of inputs,
which includes component video
switching to deliver the highest
performance and convenience. Though
elegant and sophisticated, the
Primare SP31 is simple to use:
system calibration and control over
a wide range of audio and video
sources is child's play thanks to
intuitive on-screen menus. Make it
the keystone of a breathtaking
Primare audio-visual system, and
enjoy the timeless quality,
performance and effortless control
supplied as standard to Primare
owners worldwide.
|

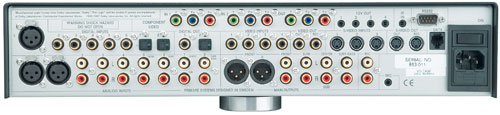

Analogue Inputs: |
1 XLR, 7 RCA (L & R) |
Digital Inputs: |
1 XLR, 5 RCA (L & R)
2 TOS-Link |
Video Inputs: |
4 Composite, 3
S-Video, 2 Component |
Analogue Outputs XLR: |
Front (L & R) |
Analogue Outputs RCA: |
Front (L & R),
Center, Sub,
Surr (L & R), Surr back (L & R) |
Analogue Record Output: |
1 RCA (L & R) |
Digital Output: |
1 TOS-Link
1 Coaxial (SPDIF) |
Video
Output: |
2 Composite and 2
S-Video, 1 Component |
Video: |
NTSC / PAL, Comp.,
S-Video |
Other Out/Inputs: |
1 IR input
1 Mic input
4 12 V triggers
1 RS232, 1 DATA |
Modes: |
Dolby®, Prologic II,
Dolby® Digital 5.1,
Surround EX 6.1,
DTS® Neo:6, DTS® 5.1,
DTS® ES 6.1,
DTS® ES 6.1 discrete,
"Surround EX 7.1" |
Video: |
NTSC / PAL |
ANALOGUE DATA: |
|
Bandwith: |
1 Hz - 100 kHz - 1
dB |
THD: |
< 0,005 %, 20 Hz -
20 kHz |
Signal-to-Noise Ratio: |
-110 dB |
Frequency Response: |
< 10 Hz - 100 kHz, 1
dB |
Input Impedance: |
15 kOhm, RCA |
Input Impedance: |
10 kOhm, XLR |
Output Impedance: |
50 Ohm |
DIGITAL DATA: |
|
Frequency Response: |
20 Hz - 20 kHz +/-
0,2 dB |
THD + Noise: |
0,005 % @ 1 kHz |
|
|
|
|
Gewicht: |
10kg |
Breedte: |
430 mm |
Hoogte: |
100 mm |
Diepte: |
385 mm |
|
|
|
