> X2.2
voorversterker |
| |
|
|
The X2.2 is a single
chassis non-remote control line
stage preamplifier. The main circuit

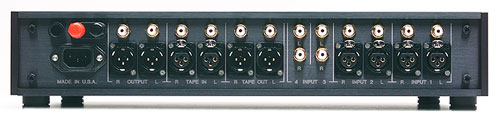

board, power supply, machined
chassis, and rear panel are
identical to those in the X2.5.
The front panel controls are simple,
intuitive, and very convenient to
use. The X2.2 has all the functions
of the X2.5, except for the
fluorescent display, balance control,
unity gain and mono switching.
The X2.2 may be upgraded to the
X2.5, adding additional
functionality and convenience to
this preamplifier.
|
|
Gain: |
selectable 4 dB or
14 dB balanced output,
selectable 4 dB or 14 dB
single-ended output |
|
Freq. Response: |
-3 dB @ 2 Hz, -3dB @
100kHz |
|
Distortion: |
< .1 % THD typically
.003% @ 2 volts @ 1kHz |
|
Max Output: |
10 volts rms bal
out, 7 volts rms unbal out |
|
Output Impedance: |
200 ohms unbalanced,
750 ohms balanced |
|
Input Impedance: |
33k ohm unbalanced,
66k ohm balanced |
|
CMRR: |
typical -55
dB, 1kHz |
|
Crosstalk: |
typical -85
dB, 1kHz |
| Noise
floor: |
< -125dBV, 20-20kHz |
|
Output Noise: |
Ext. Amp turn on: 12
Volts DC mA continuous. |
|
Power Consumption: |
35 watts |
|
Dimensions: |
|
|
|
|
|
Gewicht: |
12,7kg |
|
Breedte: |
431 mm |
|
Hoogte: |
89 mm |
|
Diepte: |
292 mm |
|
|
|
|
|
 |
|
 |
|
