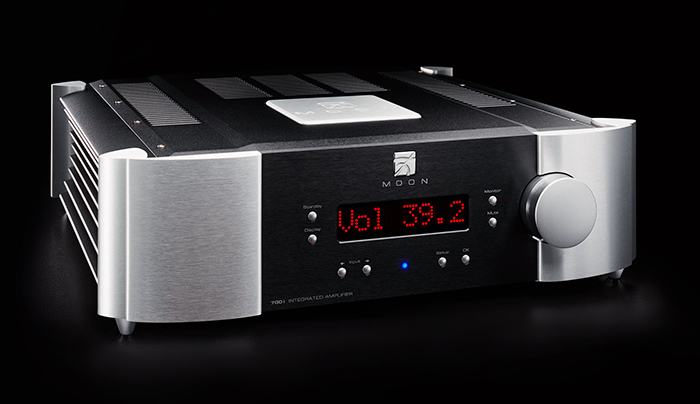

The MOON 700i v2
is the ultimate integrated amplifier.
Intended to meet the needs of the
most demanding music connoisseurs,
it is a fully differential dual-mono
design offering authority, finesse
and superb control. Using a variety
of refined technologies developed
for MOON reference products, the
700i v2 provides more sonic
transparency and accuracy than
previously thought possible. In
addition, this integrated offers
extreme flexiblity while exuding a
luxurious presence in any
environment.
Our “Lynx” Technology eliminates the
global feedback loop and results in
the following: more accurate musical
reproduction with respect to
tonality; the elimination of common
phase errors resulting from
feedback. ?? An oversized dual-mono
power supply. “Class A” power
output to 5 watts for greater
efficiency. ??Gain offset adjustment
of ±10dB for each input. Any
input is configurable to become a
“bypass input”, whereby the 700i
v2’s volume control is bypassed,
permitting a plethora of
applications including usage in
a home-theater environment.
Design features
Our “Lynx” Technology eliminates the
global feedback loop and results in
the following: more accurate musical
reproduction with respect to
tonality; the elimination of common
phase errors resulting from
feedback. An oversized dual-mono
power supply. “Class A” power output
to 5 watts for greater efficiency.
Gain offset adjustment of ±10dB for
each input. Any input is
configurable to become a “bypass
input”, whereby the 700i v2’s volume
control is bypassed, permitting a
plethora of applications including
usage in a home-theater environment.
Specifications
- Output Power at 8Ω: 175 W per
channel
- Output Power at 4Ω: 350 W per
channel
- Input Impedance: 23 700 Ω
- Inputs (RCA / XLR): 4 pairs / 1
pair
- Monitor Loop (RCA): 1 pair
- Gain: 37 dB
- Frequency response (full range):
10Hz - 100kHz +0/-0.1dB
- Crosstalk @ 1kHz: -100 dB
- THD (20Hz - 20kHz @ 1 W): 0.015 %
- THD (20Hz - 20kHz @ 175 W): 0.04 %
- Intermodulation distortion: 0.02 %
- Shipping weight: 62 lb / 28 kg
- Dimensions (width x height x depth):
18.75 x 5.5 x 18.1 in, 47.6 x 14.0 x
46.0 cm
In the Box
- AC power cable
- FRM-3’ remote control with three
‘AAA’ batteries
- SimLink™ cable with 1/8” mini plug
terminations on each end
- Owner’s manual |
